The challenges of medical equipment industrial design extend far beyond the critical use-case. It is a field governed by rigid regulatory compliance where a single missed audit or failed inspection triggers catastrophic financial delays.
Furthermore, Design for Manufacturing (DFM) complexity is amplified by the astronomical costs of specialized tooling - this is not an environment where you want to rely on novice design.
Idk3CO has been navigating these high-stakes waters for over 30 years | FREE CONSULTATION
Medical Design Controls
In the medical space, industrial design is legally bound to engineering through Design Controls.
Design Controls act as a series of checks and balances throughout the product life cycle, typically broken down into these key phases:
- User Needs: Defining exactly who will use the device, in what environment (e.g., a quiet home vs. a chaotic ICU), and what problem it solves.
- Design Inputs: Translating those user needs into measurable engineering and industrial design specifications (e.g., "Must withstand a 4-foot drop on concrete," "Must be wipeable with isopropyl alcohol").
- Design Process: The actual development, styling, prototyping, and CAD modeling of the device.

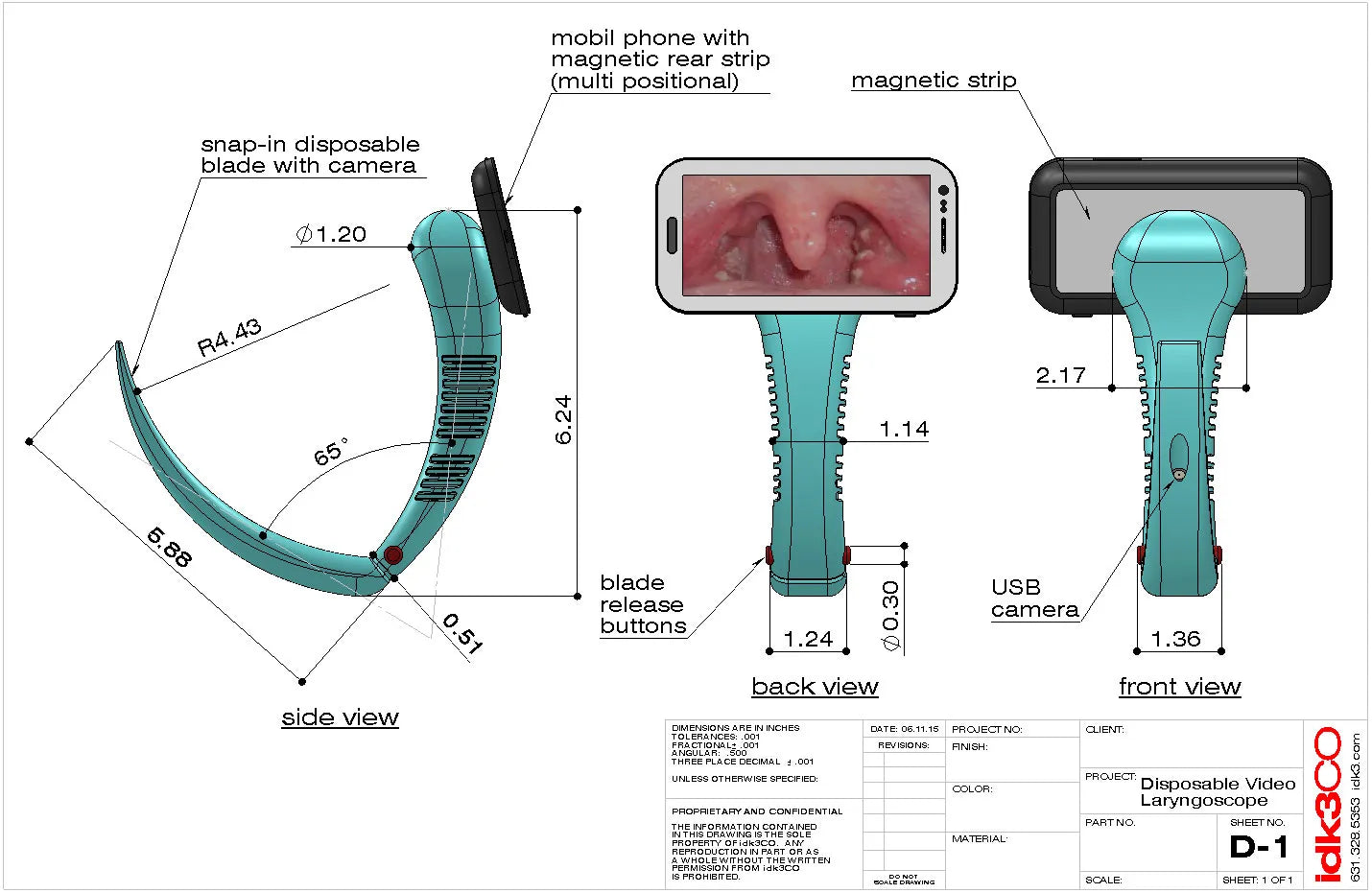

- Design Outputs: The final physical device, its blueprints, CAD files, material specifications, and software code. The output must perfectly match the inputs.
- Design Verification: Proving that you built the device right. This involves technical testing (e.g., structural, electrical, thermal) to confirm the outputs match the inputs.
- Design Validation: Proving that you built the right device. This involves human factors and usability testing with real users to confirm the device actually satisfies the original User Needs.
Design History File

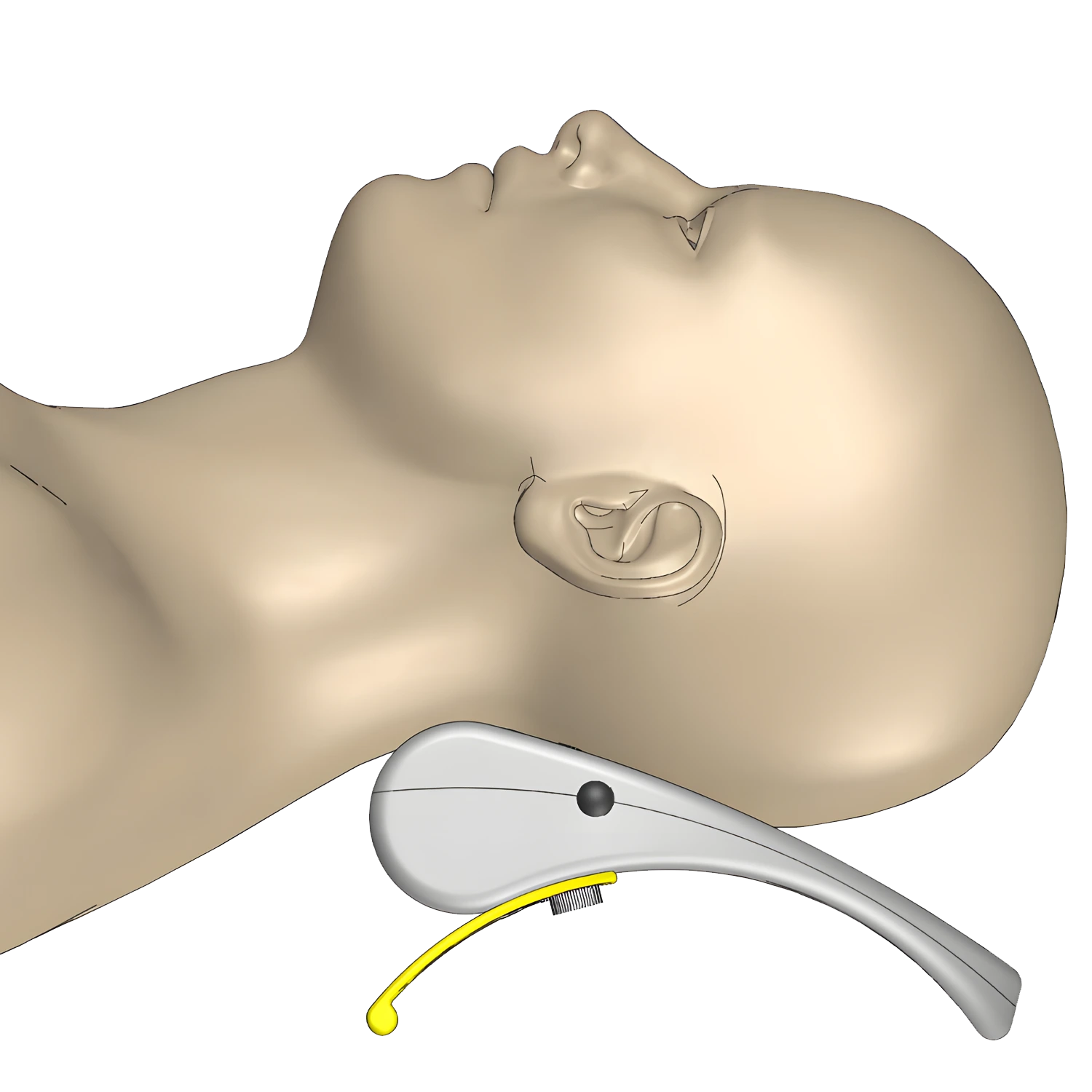

Novice designers often treat aesthetics and ergonomics as isolated creative choices, but regulators view them as potential use-errors. Every handle contour, button placement, and screen angle must be backed by a meticulous Design History File (DHF) that proves human factors testing was conducted.
Design History File (DHF): “A comprehensive, legally mandated master record that compiles all the documentation demonstrating a medical device was developed according to strict Design Controls and approved regulatory guidelines (like FDA 21 CFR 820.30 and ISO 13485)…”
If an FDA or ISO auditor finds a gap in this traceability matrix - such as an undocumented aesthetic change that alters a user's grip - the entire submission can be rejected. This doesn't just mean a rewrite; it means a 6 to 12-month regulatory freeze, while the product sits on the sidelines.
Medical Equipment Manufacturing
Beyond the administrative constraints of the Design History File (DHF) lies the brutal physical reality of medical manufacturing. High-performance polymers like PEEK, PPSU, and PEI are required to withstand harsh, constant chemical sterilization without cracking, but processing them demands expensive, hardened steel tooling. If an inexperienced designer overlooks critical Design for Manufacturing (DFM) principles such as draft angles, uniform wall thicknesses, or gate placements early in the CAD phase, the consequences are catastrophic.
At this stage, an error cannot be fixed with a simple design revision; it scraps an entire steel tool, permanently inflating the product's cost of goods sold (COGS) and introducing months of regulatory and manufacturing delays.
